Met towers

Model: K2/616/48-60

K2/616/48-60SPECIFICATIONS:
Construction type: lattice
Height: 48m – 60m
Number of ground anchors: 3
Number of guy wire levels: 7 – 9
Guy wire thickness: 4mm
Number of ginpoles needed: 2
Foot print R: 25m – 35m
Tower cross section equilateral triangle with 600mm sides

MATERIALS:
Tower: aluminum
Guy wires: zinc galvanized steel

EQUIPMENT:
Additional lightning protection system
Instrument booms up to 3 meters length IEC standards
Standard daily obstruction marking (white and red paint)
Additional power supply system - available.
Wind turbine boom for Power supply system - available.
Obstruction lighting system - available.

Powder coated version - available.
All towers have permanent installation versions.

Model: K2/616/71-84

K2/616/71-84SPECIFICATIONS;
Construction type: lattice
Height: 72m – 84m
Number of ground anchors: 6
Number of guy wire levels: 11 – 13
Guy wire thickness: 4mm
Number of ginpoles needed: 2
Foot print R: 45m – 50m
Tower cross section equilateral triangle with 600mm sides

MATERIALS:
Tower: aluminum
Guy wires: zinc galvanized steel

EQUIPMENT:
Additional lightning protection system
Instrument booms up to 3 meters length IEC standards
Standard daily obstruction marking (white and red paint)
Additional power supply system - available.
Wind turbine boom for Power supply system - available.
Obstruction lighting system - available.

Powder coated version - available.
All towers have permanent installation versions.

Model: K2/616/98-102

K2/616/98-102SPECIFICATIONS;
Construction type: lattice
Height: 98m – 102m
Number of ground anchors: 6
Number of guy wire levels: 16
Guy wire thickness: 4mm
Number of ginpoles needed: 2
Foot print R: 65m
Tower cross section equilateral triangle with 600mm sides

MATERIALS:
Tower: aluminum
Guy wires: zinc galvanized steel

EQUIPMENT:
Additional lightning protection system
Instrument booms up to 3 meters length IEC standards
Standard daily obstruction marking (white and red paint)
Additional power supply system - available.
Wind turbine boom for Power supply system - available.
Obstruction lighting system - available.

Powder coated version - available.
All towers have permanent installation versions.

Model: K2/616/120

K2/616/98-102SPECIFICATIONS;
Construction type: lattice
Height: 120m
Number of ground anchors: 9
Number of guy wire levels: 19
Guy wire thickness: 4 - 5mm
Number of ginpoles needed: 2
Foot print R: 80m
Tower cross section equilateral triangle with 600mm sides

MATERIALS:
Tower: aluminum
Guy wires: zinc galvanized steel

EQUIPMENT:
Additional lightning protection system
Instrument booms up to 3 meters length IEC standards
Standard daily obstruction marking (white and red paint)
Additional power supply system - available.
Wind turbine boom for Power supply system - available.
Obstruction lighting system - available.

Powder coated version - available.
All towers have permanent installation versions.

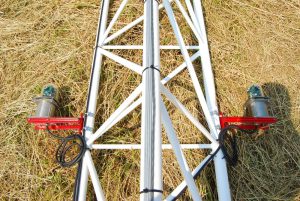

MET MAST OBSTRUCTION LIGHTING SYSTEMS

MET MAST OBSTRUCTION LIGHTING SYSTEMSWe offer sollutions for autonomous obstruction lighting systems

Low intensity type A

Low intensity type B

As well as low intensity obstruction lighting type A and B with parameters in complience with European norms.

POWER SUPPLY FOR HEATING SYSTEMS

POWER SUPPLY FOR HEATING SYSTEMSWe manufacture and service autonomous Power supply systems for heated sensors. The system specifications depend on the mast location and individual needs. Technical support includes the installation and constant monitoring of the system.









Double-k offers the following:

  • manufacturing and sales of met towers
  • designing of power supply systems for obstruction lighting and heated sensors
  • distribution of measuring instruments from world leading manufacturers: Ammonit, Thies Clima, Second Wind, Met One Instruments, Vector Instruments, Campbell Scientific, Wilmers Messtechnik, R.M. Young, Vaisala, Risø, DEWI, Kintech Engineering, NRG Systems.

Double-K custom designed a line of met towers offering the following advantages over other product lines in the market:

  • high strength parameters
  • light weight
  • climbable
  • corrosion resistant

For a full line of products please see the catalog
