Measuring equipment

Anemometers

Anemometers measure the horizontal wind speed (velocity). This parameter is crucial for any wind site assessment. Cup anemometers are the general standard type of anemometer. They are robust and resistant to turbulence and skew winds caused by masts and traverses. Each anemometer should be individually calibrated and equipped with a certified calibration report according to international standards (e.g. MEASNET). At least two anemometers have to be installed on a met mast. Most anemometers can be equipped with electronically regulated heating.

Studies regarding anemometer behaviour

In order to analyse the accuracy of anemometer and define criterias for anemometer which are suitable for wind measurement the EU has financed three comprehensive studies in which well-known institutes like Risø and DEWI took part. The studies SITEPARIDEN, CLASSCUP and ACCUWIND indicate that the following criterias are crutial for anemometers used in wind measurement:

• Angular response: anemometer behaviour according to variable flow angle
• Turbulence behaviour: anemometer reaction on changing velocity
• Bearing friction: influence of temperature on bearing friction

SITEPARIDEN (2001)

The SITEPARIDEN study describes that different cup anemometer types deliver measurement values that deviate up to 4%. Even calibrated anemometers had huge deviations.
Download SITEPARIDEN study

CLASSCUP (2003)

The CLASSCUP study analysed the reasons for the deviations in measurement values in the SITEPARIDEN study. The results are: Angular response, turbulence behaviour and bearing friction. The results of the study lead to a classification systeme which decribes the deviations of cup anemometers. Today the classification systeme is known as standard IEC 61400-12-1.
Download CLASSCUP study

ACCUWIND (2006)

The ACCUWIND study assessed the accuracy of anemometers on the market. The study indicates that cup anemometer Thies First Class Advance is the the best anemometer worldwide (see table 4-4).
Download ACCUWIND Study "Methods (1555)"
Download ACCUWIND Study "5 Anemometers (1556)"
Download ACCUWIND Study "Final Summary (1563)"
See also: Download Studies: Accuracy Standards

Summary of table 4-4 Classification of five cup anemometers according to IEC61400-12-1 using TRTC modem with DEWI tilt data and with influence of friction as well as futher classification studies (see reference below)

*Class A describes flat terrains.
**Class B describes complex terrains.
**** NRG Class 1 is a ball bearing version of NRG #40C. In 2012 DTU Wind Energy Department classified the anemometer NRG Class 1 acc. to ACCUWIND and IEC 61400-12-1.
**** Classification from 2004 performed in FOI-LT5 wind tunnel, which is not MEASNET-certified.

Thies anemometer First Class Advanced

Manufacturer: ThiesOrder-No: S11100 / S11100HClassified according to: IEC 61400-12-1 (2005-12), MEASNET, CLASSCUP, ISO 17713-1According to the ACCUWIND study (testreport1) it is the best sensor on the market! Highly accurate anemometer, class: S 0.5 / A 0.9 / B 3.0 Outstanding performance Optimum linearity: r > 0.999 99 (4 … 20 m/s) High turbulence intensity Excellent price-value ratio Measuring range: 0.3 ... 75 m/s Resolution: 0.05 m wind run Temperature range: -50 ... 80°C Low start up value High survival speed Minimum overspeeding Very robust and weatherproof (seawater-proof) Heatable

Vector L100 First Class

Manufacturer: Vector Instrucments UKOrder-No: S14100 / S14100HClassified according to IEC Standards Optoelectronic wind speed sensor Class: 1 / A 1.8 / B 4.5 Measuring range: 0.2 ... 75 m/s Temperature range: -30 ... 70°C Resolution: 0.05 m/s Weight: approx. 0.5 kg Low energy consumption Robust and weatherproof (seawaterproof)

Thies anemometer Compact

Manufacturer: ThiesOrder-No: S12100HOpto-electronic wind senor with low power frequency output signal Measuring range: 0.5 ... 50 m/s Resolution: < 0.1 m/s Temperature range: -30 ... 70 °C Heatable Not suitable for wind site assessment according to IEC 61400-12-1

WindSensor (RISØ) P2546A-OPR

Manufacturer: WindSensor (Risø)Order-No: S16100CClassified according to CLASSCUP. Very reliable anemometer Class: 1 / A 1.9 / B 8.0 Measuring range: 0 ... 70 m/s Negligible overspeeding Temperature range: -35 ... 60°C Starting speed: < 0.4 m/s Non heatable

Vaisala anemometer WAA 252

Manufacturer: VaisalaOrder-No: S15100HNon-freezing all weather sensor Heatable cups! Opto-electronic transducer Class: 1 Measuring range: 0.4 ... 75 m/s Temperature range: -55 ... 55 °C Starting speed: < 0.5 m/s Good effects in cold (arctic) climatic conditions Heatable (cups included)

Propeller Anemometer MODEL 27106T

Manufacturer: YoungOrder-No: S17100Measuring of horizontal and vertical wind speed Not classified according to MEASNET and IEC Measuring range: axial flow 0 ... 40 m/s (90 mph) Measuring range: all angles 0 ... 35 m/s (80 mph) Temperature range: -50 ... 50°C Distance constant: 2.1 m Output signal: 1800 rpm (± 500 mV) = 9.0 m/s (20.1 mph)

Wind Vanes

Wind vanes determine wind direction. Evaluation of the wind direction enables the best possible positioning of wind turbines. Ammonit wind vanes offer an excellent, fine resolution of 1°, while having very low energy consumption. It is essential that a wind vane covers an entire 360° degree radius, without a north gap. Cheaper wind vanes often have lower quality internal electro-mechanic fittings, which limit their life span, and a considerable north gap. Most wind vanes can be equipped with electronically regulated heating. Digital (TMR) and potentiometric wind vanes are available.

Wind Vanes TMR vs. Wind Vanes POT

With the digital channels of the new Ammonit Meteo-40 data logger, digital wind vanes TMR (Tunnel Magneto Resistance) can easily be connected, i.e. Thies First Class TMR 10-bit serial-synchron and Thies Compact TMR 10-bit serial-synchron. Compared to wind vanes POT, digital wind vanes TMR are the winner on the technical perspective as well as on the commercial point of view. The advantages at a glance: Digital wind vanes TMR ...

• are offered at a lower price than potentiometer wind vanes.
• are subject to less mechanical wear than potentiometer wind vanes thanks to their solid state design. Wind vanes TMR do not have moving parts, except the bearings. Thus digital wind vanes TMR are more reliable and less susceptible to failure.
• deliver more precise measurement values (see table below).

Thies Windfahne First Class POT (new Version)

Manufacturer: ThiesOrder-No: S21210 S21210H (heatable)Measurement principle: Potentiometer 2kΩSignal output: Voltage (Potentiometer 0 ... 2kΩ) Measurement range: 0 ... 360°, no north gap Accuracy: ±1° Resolution: 1° Damping coefficient: >0.3 Survival speed: 85 m/s Ambient temperature: -50 ... 80°C Electrical output: potentiometer (0 ... 2kΩ) Hysterese and non-wearing magnet clutch between wind vane and potentiometric axis Easy to assemble and service friendly Heatable

Thies Wind Vane First Class TMR (neW Version)

Manufacturer: ThiesOrder-No: S21110 S21110H (heatable)Measurement principle: TMR (Tunnel Magneto Resistance)Signal output: 10-bit serial-synchronous Measurement range: 0 ... 360° Accuracy: ±0,5° Resolution: 0.35° Survival speed: 85 m/s Ambient temperature: -50 ... 80°C Output: 10-bit serial-synchronous Low starting threshold <0.5 m/s Robust high quality wind vane Easy to assemble and desamble Heatable

Thies Wind vane Compact Potentiometer

Manufacturer: ThiesOrder-No: S22200 / S22200HMeasurement prinziple: potentiometer 2kΩSignal output: voltage (potentiometer 0 ... 2 kΩ) Measuring Range: 0 ... 360°, no north gap 0 ... 2 kΩ Accuracy: ± 2° Resolution: 0.5° Damping coefficient: > 0.3 Survival speed: max. 60 m/s Temperature range: -30 ... +70°C Electr. output: potentiometric Digital output signal: gray code Heatable

Thies Wind Vane Compact TMR

Ultrasonics

Ultrasonic anemometers measure the horizontal wind speed and direction as well as the acoustic virtual temperature. However, because of their high power consumption, a connection to mains power supply is required and their application at self-contained, solar-powered measurement systems is not feasible. Ultrasonics offer excellent performance ratings at well-powered measuring stations. At present they are not accredited according to the internationally valid MEASNET regulations. Ultrasonics are applied for wind park monitoring, on wind turbines and on offshore projects. Most ultrasonic anemometers can be fitted with electronically regulated heating.

Ultrasonic Anemometer Thies Compact

Manufacturer: ThiesOrder-No: S81100HMeasuring wind speed & direction and acoustic virtual temperature Orthogonal wind speed vectors (X- + Y-distance) Wind speed: 0 ... 65 m/s Wind direction: 0 ... 360° Acoustic virtual temperature: -50 ... +70°C Scalar / vectorial wind speed, wind direction NMEA data protocol ASCII THIES FORMAT Analog Data output

Ultrasonic Anemometer Thies 2D

Manufacturer: ThiesOrder-No: S82100H Heating for sensor arms S82200H Heating for sensor arms and ultrasonic converters S83200H Heating for sensor arms, ultrasonic converters and housingMeasuring wind speed & direction and virtual temperature Measuring range: 0 ... 360° Wind speed rate: 0 ... 75 m/s Robust and weatherproof Highest precision Maintenance free Digital & analog outputs Heatable

Ultrasonic Anemometer Thies 3D

Manufacturer: ThiesOrder-No: S83100H Heating for sensor arms and ultrasonic converters S83300H Heating for sensor arms, ultrasonic converters and housing Details Measurement of wind direction, wind speed in 3 dimensions X, Y, Z Measurement Range: 0 .... 65 m/s Temperature Range: - 40 ... +70°C Resolution: 1° Radius: 0 ... 360° Highest precision Real time measurement Maintenance free / heatable Digital/analogue In- /Output Channels

Ultrasonic Anemometer Lufft V200A

Manufacturer: LufftOrder-No: S85200HMaintenance-free sensor for wind speed and direction measurement, as well as barometric air pressure and virtual temperature Wind speed: 0 ... 75 m/s Wind direction: 0 ... 360° Virtual temperature: -50 ... 70°C Modbus RTU protocol

Ultrasonic Anemometer Lufft Ventus

Manufacturer: LufftOrder-No: S85250HMaintenance-free sensor for measuring wind speed and direction, as well as barometric pressure and virtual temperature Wind speed: 0 ... 75m/s Wind direction: 0 ... 359,9º Air pressure: 300 ... 1200 hPa Virtual temperature: -50 ... 70°C Modbus RTU protocol

Ultrasonic Anemometer gill Windmaster Pro 3D

Manufacturer: GillOrder-No: S84800Measuring wind speed & direction and acoustic virtual temperature Radius 0 ... 359º (no north gap) Weather resistant in extreme weather conditions 20 Hz or optional 32 Hz data rate Optional analog In- and output U, V, W, SOS & Sonic temp output Maintenance-free

Ultrasonic Anemometer Gill WindObserver 2D

Manufacturer: GillOrder-No: P6027 - non heatable Order-No: P6027 H - heatable Order-No: P6027 A - AnalogMeasuring wind speed, wind direction and acoustic virtual temperature Radius 0 ... 359º (no north gap) Wind speed rate: 0 ... 75 m/s Weather resistant in extreme conditions (anti-icing) Output rate 1 Hz or 4 Hz Low starting speed 0.01 m/s 1. 4 or 10 Hz data rate NMEA and analog output Calibration according to national standards

Ultrasonic Anemometer gill WindSonic

Manufacturer: GillOrder-No: P6022Measuring wind speed & direction Radius 0 ... 359º (no north gap) Output rate: 1 Hz, 2 Hz or 4 Hz Low starting speed < 1 sec. Corrosion protected, UV resistant

Compact Weather station Lufft WS200-UMB

Manufacturer: LufftOrder-No:Measurement of wind speed and wind direction Measurement principle: Ultrasonic Wind speed range: 0 ... 75 m/s Wind direction: 0 ... 359,9° RS485 interface MODBUS protocol Heatable

Compact Weather station Lufft WS300-UMB

Manufacturer: LufftOrder-No:Measurement of air pressure, temperature and relative humidity Air pressure range: 300 ... 1200 hPa Temperature range: -50 ... 60°C Relative humidity: 0 ... 100% RH RS485 interface MODBUS protocol Heatable

Compact Weather station Lufft WS500-UMB

Manufacturer: LufftOrder-No: S85900HMeasurement of wind speed and wind direction as well as air pressure, temperature and relative humidity Wind speed range: 0 ... 75 m/s Wind direction range: 0 ... 359.9° Air pressure range: 300 ... 1200 hPa Temperature range: -50 ... 60°C Relative humidity: 0 ... 100% RH RS485 interface MODBUS protocol Heatable

Compact Weather station Lufft WS600-UMB

Manufacturer: LufftOrder-No:Measurement of wind speed and wind direction as well as air pressure, temperature and relative humidity, and additionally precipitation Wind speed range: 0 ... 75 m/s Wind direction range: 0 ... 359.9° Air pressure range: 300 ... 1200 hPa Temperature range: -50 ... 60°C Relative humidity: 0 ... 100% RH Precipitation type: rain / snow Resolution of precipitation: 0.01mm RS485 interface MODBUS protocol Heatable

Power Supply

Ammonit measuring systems are fully self-contained. A connection to the local power network is not required. The entire measuring system can be reliably powered with a 10 W solar panel. In some cases, larger panel sizes may be required, such as with the application of a large number of sensors when a satellite communication system is applied, or in cold climates requiring sensor heating.

Solar module 30 W

Manufacturer: ET Solar GroupOrder-No: M51030 Capacity 30 W Max. voltage output: 17.72 V (Vmp) Max. current output: 1.69 A (Imp) Size: 427 x 633 x ca 35 mm Weight: approx. 4 kg

Solar module 50 W

Solar modules > 100 W

Solar controller Steca solsum F

Manufacturer: StecaOrder-No: M52110 (P821x) System voltage: 12 V (24 V) Max. current output: 6 A Max. voltage output: 6 A Temperature range: -25 ... 50 °C Size: 145 x 100 x 30 mm Weight: approx. 150 g Protection: IP 32

AQPower - Stand-Alone Power Supply System

Manufacturer: AQSystemOrder-No: M58200 AQPower M58280 Terminal box for met mast M58290 Customized trailerStand-alone power supply system consisting of diesel generator and solar modules. Integrated diesel heater. Remote control and monitoring. Output voltage: 24 VDC (optional 12 VDC) Max. output power: 600 W Battery: 2x 200 Ah Operating temperature: -40 ... 60 °C Diesel generator power: 3.5 kW Dimension: 2.2 x 1.4 x 1.5 m Weight: approx. 700 kg (empty fuel tank)

Power Supply Systeme for ZephIR 300 Lidar

Order-No: M58600Stand-alone power supply system with fuel cell and solar modules. Remote control and monitoring. Trailer can accomodate ZephIR 300 LiDAR. Output voltage: 12 VDC Max. output power: 200 W Battery: 440 Ah Operating temperature: -40 ... 60 °C Dimensions: 2.6 x 1.4 x 2.05 m Weight: approx. 750 kg

Connection with main Supply

Barometric Pressure Sensors

Barometric pressure sensors (barometers) measure the air pressure. Air pressure and air temperature should be evaluated for an accurate wind site assessment, however, because this data could be obtained from nearby weather stations, they are not considered an essential part of a measuring system. Even so, barometers are worth consideration, taking into account the savings made on the expense of supply, analysis and incorporation of external data over the course of a measuring campaign (at least 12 months). We generally would recommend the inclusion of an air pressure sensor as part of a measuring system.

Impact of measurement errors on AEP calculation

Air pressure as well as air temperature significantly affect the AEP (Annual Energy Production). Hence according to IEC 61400-12-1 air pressure has to be measured in a wind measurement campaign.

Wind power is linear proportional to air pressure. A measurement error of 1% in air pressure induces 1% error on AEP. The standard IEC 61400-12-1 specifies the relations where the sensitivity factor for air pressure in the energy calculation is c_B,i ≈ P_i / 1013 hPa.

Therefore IEC 61400-12-1 requires measuring air pressure and temperature.

Show physical background details

barometric pressure sensor AB 60

Manufacturer: AmmonitOrder-No: S31100Optional installation within a met-mast mounted steel cabinet Piezoelectric barometric pressure sensor Measuring range: 800 ... 1100 hPa (mbar) Voltage output: 0 ... 5 VDC Supply voltage: 9 ... 32 VDC Low energy consumption: <5 ma="" 12="" vdc="" li=""> Temperature range: -40 .. .85 °C Humidity range: 0 ... 98 %RH Atmosphere: non ionic, non corrosive Response time 10 to 90 %, typ. 50 ms

barometric pressure sensor AB 100

Manufacturer: AmmonitOrder-No: S31200Optional installation within a met-mast mounted steel cabinet Piezoelectric barometric pressure sensor Measuring range: 600 ... 1100 hPa (mbar) Voltage output: 0 ... 5 VDC Supply voltage: 9 ... 32 VDC Low energy consumption: <5 ma="" 12="" vdc="" li=""> Temperature range: -40 ... 85 °C Humidity range: 0 ... 98 %RH Atmosphere: non ionic, non corrosive Response time 10 to 90 %, typ. 50 ms

Barometric pressure sensor Vaisala PTB 110

Manufacturer: VaisalaOrder-No: S32100 PTB 110.3 S32200 PTB 110.2 S32300 PTB 110.1 Measuring range: 500, 600, 800 ... 1100 hPA Piezoelectric pressure sensor Several pressure ranges Total accuracy: ± 0.3 hPa at 20 °C ± 1.0 hPa at -20 ... 60 °C ± 1.5 hPa at -40 ... 60 °C Output voltage: 0 ... 2.5 or 0 ... 5 VDC Low energy consumption < 4 mA @ 12 VDC Setting time: 1 sec. to reach full accuracy after power-up

Temperature Humidity Sensors

Temperature sensors measure air temperature, while humidity sensors measure air humidity. Both sensors are often applied in combination to reduce cost. The calculation of the air humidity does not directly influence a wind site assessment, but knowing this parameter helps assessing the potential danger of ice build-up at the measuring location. Temperature sensors should always be mounted at a height of at least 10m to ensure sufficient distance from heat radiating from the earth.

Impact of Measurement Errors on AEP Calculation

Temperature and air pressure significantly affect the AEP (Annual Energy Production). Hence, according to IEC 61400-12-1 temperature and air pressure have to be measured in a wind measurement campaign.

Wind power is linear proportional to the invers of temperature 1/T (in Kelvin). At 15°C, 1°C error on temperature measurement induces 0.35% error on AEP. The standard IEC 61400-12-1 specifies the relation where the sensitivity factor for temperature is c_T,i ≈ P_i / 288.15 K.

Therefore IEC 61400-12-1 requires measuring air pressure and temperature.

Show physical background details

The impact of humidity on AEP might be significant if air temperature is high. At sea level and at air temperature of 20°C, air density varies 1.2% between 0 … 100% humidity. It varies 2.0% at 30°C and 4% at 40°C. At high temperatures the IEC recommends to measure the humidity, as well.

Temperature Humidity Sensor

Manufacturer: Galltec Mess- und Regeltechnik GmbHOrder-No: S42100 Temperature Sensor S52100 Temperature + Humidity Sensor Measuring range: - 30 ... +70°C and 0 ... 100% RH Accuracy temperature: ±0.2 K in the range -27 ... +70°C Accuracy humidity: ±2% rH in the range 5 ... 95% rH at 10 ... 40°C Starting time: (calm air) < 20 s Measurement element temperature : (acc. to DIN EN 60751) Pt100 1/3 DIN

weather- / radiation shield

Manufacturer: Galltec Mess- und Regeltechnik GmbHOrder-No: S50000Temperature and humidity sensors are often applied in combination. Both sensors are installed within a weather- and radiation shield.

Steel Cabinets

Ammonit offers robust, weatherproof steel data logger cabinets in various sizes. The cabinet will protect your data logger against weather and condensation damage, theft and vandalism. Our CE certified steel cabinets are easy to install and maintain. Optional components, such as a GSM/GPRS communication module, barometric pressure sensor, battery and surge protection, can also be accommodated within the cabinet. The size of cabinet depends on the size of battery and the number of selected components; we currently offer 2 sizes. Cabinets are typically mounted at a height of approximately 6 m and padlocked for protection from vandalism and theft.

Steel cabinet C6 (meteo-40)

Manufacturer: AmmonitOrder-No: M16xxx / M26xxx / M36xxx Size: 500 x 650 x approx 250 mm CE certified, robust weatherproof steel casing Material: powder coated steel sheet / IP 55 Easy to install and maintain components Surge protection, Protection against weather-, condensation damage, vandalism and theft Weight: approx. 22 kg Door hinges: right, polyurethan-sealant

Ammonit Data Logger Meteo-40

Meteo-40 meets the highest requirements for data security and data quality. Perform your measurement campaign with Meteo-40 to have traceable and transparent measurement data from recording to data processing. Your campaign will be compliant to the German TR6 rev. 9 and the MEASNET guideline with regard to data authenticity and data integrity.

Meteo-40 is available in three configurations - for every application the best suitable data logger. Meteo-40 is designed for high performance and accuracy working at a minimum of power. You can reliably supply a complete measurement system with only a 50 W solar module - even in remote sites under extreme weather conditions.

Meteo-40 is the first data logger in the field of wind and solar resources assessment, which includes security features like digital signature and encryption to protect integrity and authenticity of your irreplaceable measurement data!

We design each measurement system according to your requirements including all meteorological sensors, communication and power supply system. Storage in a CE-certified steel cabinet protects the data logger against weather and condensation damage as well as theft and vandalism.

*TR6 Rev.9: German guideline for the determination of wind potential and energy yield
**MEASNET Site Assessment guideline: Evaluation of site-specific wind conditions

Meteo-40L, Meteo-40M & Meteo-40S

Manufacturer: AmmonitOrder-No.: Meteo-40S, M11010 Meteo-40M, M21010 Meteo-40L, M31010 Accessories: module M83510 for 5V sensor supply module M83530 for overcurrent protection for sensor supply module M83555 incl. repeater for RS485 sensorsApplications: wind site assessment, wind farm monitoring, climate research, solar assessment and monitoring, agricultural and traffic meteorologyMeets highest security requirements for data authenticity and integrity Digital signature and encryption, e.g., measurement data and logbook files Up to 2 GB memory, recording 1 sec. original measurement data additional storage of aggregate data (min. 3 years) Many channels: Meteo-40S, 11 channels Meteo-40M, 22 channels Meteo-40L, 35 channels High resolution (~ 16bit, ~ 8Hz), symmetric, differential analog channels with various input ranges to choose from (± 0.1V, ± 1V, ± 10V) High sensitivity analog input, e.g. temperature sensor Pt 100 Digital channel for smart sensors, e.g. Thies TMR wind vane Data communication and exchange via HTTPS, FTP, SCP connection and email 1 USB port for PC connection; 2 USB ports for modem and adapter: GSM, GPRS, CDMA, WiFi; 1 Ethernet port for LAN, router. Data output: Ethernet, RS-485 Compatibility with SCADA systems Integrated Linux system for maximum flexibility and adaptability User-friendly web interface for configuration and controlling (no additional software needed) Low energy consumption (50 W solar panel) Reliable, flexible and user-friendly

Communication Systems: GSM/GPRS/Satellite/Interface

You can communicate with your data loggers from your PC / laptop in 3 ways:

1) GSM- / GPRS-system (email or sms)
2) Satellite, if no GSM-network is available
3) Direct interface at your measuring station

Your measuring data can be accessed at time periods of your choice, e.g. daily, several times a week, or monthly. Ammonit has developed various software programs that simplify communication with your data, such as automatic data mailing as well as accessibility and archiving procedures. These programs are available on our website for your free download.

UMTS/HSPA/GSM/GPRS/GSM/EDGE + GPS System (PHS8-P)

Manufacturer: MC TechnologiesOrder-No: M76400 (UMTS/HSPA/GSM/GPRS/EDGE and GPS modem with antenna) M71400 (UMTS/HSPA/GSM/GPRS/EDGE and GPS)True global coverage - five band modem (UMTS/HSPA/GSM/GPRS/EDGE) SMS communication Five Band UMTS/HSPA: 850/800, 900, 1900 and 2100 MHz Quad-Band GSM: 850, 900, 1800, 1900 MHz Roaming accross different wireless network technologies Improved data speed GPS SMS USB 2.0 interface (Type: B)

Data transfer via Satellite (BGAN)

Manufacturer: Hughes Network ServicesOrder-No: M71850 - 9502 BGAN M2M satellite terminal M71859 - Pole Mount Kit Global application via Inmarsat Satellite Network Unlimited data transfer between PC and measuring station Applicable when GSM-/ GPRS-network is not available Low power consumption (< 20W at data transfer) Ethernet interface (RJ45) Configuration with PC via Ethernet interface TNC connection of external antenna

Wireless USB Adapter

Manufacturer: TP-LINKOrder-No: M01520Establishes hotspot for wireless communication with Meteo-40 data loggers - excellent for maintenance work in the field Wireless speed up to 150Mbps USB interface Detachable 4dBi antenna to strengthen signal power WPA/WPA2 encryption

Omnidirectional antenna

Manufacturer: MC Technologies GmbHOder-No: M72110Omnidirectional antenna with magnet foot for GSM and UMTS frequencies Reception in high density areas and mountain regions Installation via magnet onto steel cabinet GSM 890-960 MHz UMTS 1710-2150 MHz 3dBi (890-960 MHz), 5dBi (1710-2150 MHz) Impendance: 50 Ohm Height: 341 mm Weight: 215 g

Directional antenna

Manufacturer: MC Technologies GmbHOrder-No: M72142Directional antenna for GSM and UMTS frequencies GSM 900/1800/PCS1900 & 3G UMTS Power supply only in open unobstructed regions 890-960 MHz / 1710-1880 MHz / 1850-1990 MHz / 1900-2170 MHz 8dBi (890-960 MHz), 9dBi (1710-1900 MHz), 11dBi (1900-2170 MHz) Polarisation: Vertical Impendance: 50 Ohm

Radiation Sensors (Irradiance)

Pyranometers (global radiation sensors) measure global radiation. They are also used as reference instruments due to their measurement precision. The use of this sensor is crucial for measurements with solar-powered applications. It is advisable to use only classified and calibrated pyranometers to ensure accurate results. Adjustable feet and a level allow easy horizontal adjustment.

Specification of Solar irradiance sensors acc. ISO 9060

Pyranometers are classified according to the ISO 9060 standard: "Solar energy - Specification and classification of instruments for measuring hemispherical solar and direct solar radiation". The standard is officially approved by the World Meteorological Organization (WMO). The standard specifies three classes:

• Secondary Standard: Scientific quality and highest accuracy
  Applications: Meteorology (BSRN Network); Testing in PV , CPV and CSP
• First Class: Good quality
  Applications: Measurements for hydrology networks and greenhouse climate control
• Second Class: Medium quality
  Application: Economic solution for routine measurements in weather stations and field testing

Pyranometer MS-802 - ISO9060 SEcondary standard

Manufacturer: EKO InstrumentsOrder-No: S64120ISO 9060 Secondary Standard-classified sensor for the determination of global and diffuse solar irradiance ISO 9060 „Secondary Standard" Max irradiance: 2000 W/m² Sensitivity: ∼7 µV/W/m² Spectral range: 285 ... 2800 nm Non-linearity: < 0.2% Response time (95%): < 5s Operating temperature: -40 ... +80°C Delivery includes calibration certificate.

Pyranometer CMP 10 - ISO 9060 SEcondary standard

Manufacturer: Kipp & ZonenOrder-No: S61130WMO-recommended measurement value transmitter for the determination of global radiation.Maintenance-free due to internal desiccant, which lasts for 10 years. 5 years manufacurer's warranty. „Secondary Standard", WMO + ISO 9060 Applicable as refence instrument due to its measurement precision Easy to adjust horizontally due to adjustable feet and a level Max. irradiance: 4000 W/m² Sensitivity: 7 ... 14 µV/W/m² Spectral range: 285 ... 2800 nm Linearity: < 0.2% (0 ... 1000 W/m²) Operating temperature: - 40 ... +80°C Delivery includes calibration certificate

Pyranometer CMP 11 - ISO 9060 SEcondary standard

Manufacturer: Kipp & ZonenOrder-No: S61120WMO- recommended measurement value transmitter for the determination of global radiation „Secondary Standard", WMO + ISO 9060 Applicable as refence instrument due to its measurement precision Easy to adjust horizontally due to adjustable feet and a level Max. irradiance: 4000 W/m² Sensitivity: 7 ... 14 µV/W/m² Spectral range: 285 ... 2800 nm Linearity: < 0.2% (0 ... 1000 W/m²) Operating temperature: - 40 ... +80°C Delivery includes calibration certificate

Pyranometer MS-410 - Iso 9060 First Class

Manufacturer: EKO InstrumentsOrder-No: S64130ISO 9060 First Class-classified sensor for the determination of global solar irradiance Perfectly suited for horizontal or tilted applications ISO 9060 „First Class" Max. irradiance: 2000 W/m² Sensitivity: ∼7 µV/W/m² Spectral range: 285 ... 2800 nm Non-linearity: < 1% Response time (95%): < 18s Operating temperature: -40 ... +80°C Delivery includes calibration certificate

Pyranometer CMP 6 - ISO 9060 First Class

Manufacturer: Kipp & ZonenOrder-No: S61110Measuring value transmitter for the determination of global radiation. Possible application as albedometer „First Class", WMO + ISO 9060 Easy to adjust horizontally due to adjustable feet and a level Max. irradiance: 2000 W/m² Sensitivity: 5 ... 20 µV/W/m² Spectral range: 285 ... 2800 nm Non-Linearity: < 1% (0 ... 1000 W/m²) Operating termperature: -40 ... +80°C Delivery includes calibration certificate

Pyranometer MS-602 - ISO 9060 Second Class

Manufacturer: EKO InstrumentsOrder-No: S64110ISO 9060 Second Class-classified sensor for the determination of global solar irradiance Low temperature dependency unique in its class ISO 9060 „Second Class" Max. irradiance: 2000 W/m² Sensitivity: ∼7 µV/W/m² Spectral range: 285 ... 2800 nm Non-linearity: < 1.5% Response time (95%): < 17s Operating temperature: -40 ... +80°C Delivery includes calibration certificate

Pyranometer CMP 3 - Iso 9060 SEcond Class

Manufacturer: Kipp & ZonenOrder-No: S61100Measuring value transmitter for the determination of global radiation. Possible application as albedometer „Second Class", WMO + ISO 9060 Max. irradiance: 2000 W/m² Sensitivity: 5 ... 20 µV/W/m² Spectral range: 300 ... 2800 nm Non-Linearity: < 1% (0 .. 1000 W/m²) Response time (95%): 18s Operating temperature: -40 ... +80° C Delivery includes calibration certificate

delta-t sunshine Pyranometer spn 1

Manufacturer: Delta-T Devices Ltd.Order-No: S65100 Measurement global (total) and diffuse irradiance in W/m² WMO sun threshold: 120 W/m² direct beam Unique glass dome Wideband thermopile sensors Near ideal spectral and cosinus response Accuracy (cosine corr.) ± 2% of incoming radiation over 0 ... 90° Zenith angle Diffuse Radiation: ± 8% ± 10 W/m² individual Global (Total): ± 5% ± 10 W/m² hourly average Accuracy: ± 5% daily intervals Non-Linearity: < 1% Measuring range: 0 to >2000 W/m² Spectral range: 400 to 2700 nm Temperature range: - 40 ... +70°

Sunshine Duration Sensor CSD3

Manufacturer: Kipp & ZonenOrder-No.: S61910Sensor for precise measurement of sunshine duration. Spectral range: 400 ... 1100 nm Resonse time: < 1 ms Accuracy of sunshine hours: > 90% Accuracy of direct signal: > 90% @ W/m² Stability: < 2% change per year Temperature dependence: < 0,1% /K Operating temperature: -40 ... 70°C Impedance: 1 kΩ

Pyrheliometer MS-56 - ISO 9060 First Class

Manufacturer: EKO InstrumentsOrder-No: S64210Sensor for the determination of direct solar irradiance ISO 9060 "First Class" Sensitivity: 6 ... 10 µV/W/m² Spectral range: 200 ... 4000 nm Max. irradiance: 2000 W/m² Signal output: 0 ... 10mV Non-linearity (100 ... 1000 W/m²): < ±0,5% Temperature dependence: < ±0,5% (-20 ... 50°C @ 20°C) Operating temperature: -40 ... +80°C

Pyrheliometer CHP1 - ISO 9060 First Class

Manufacturer: Kipp & ZonenOrder-No: S62210Sensor for unattended direct normal incidence solar radiation measurement. ISO 9060:1990 Classification First Class Sensitivity: 7 ... 14 µV/W/m² Spectral range: 200 ... 4000 nm Max. irradiance: 4000 W/m² Typical signal output for atmospheric applications: 0 ... 15 mV Non-linearity (0 ... 1000 W/m²): < 0.2% Temperature dependence of sensitivity: < 0.5% (-20 ... 50°C) Operating temperature: -40 ... +80°C

Rotating Shadowband Irradiometer

Order-No.: S65600Measurement of GHI, DHI and DNI with a single device.Rotating shadowband to block direc beam irradiation for DHI measurement. Uncertainty: GHI in W/m²: <3,5% DNI in W/m²: <3,5% Power consumption: <1W (average) Power supply: 12 VDC Temperature range: -30 ... +65°C

Sun tracker STR 21g

Manufacturer: EKO InstrumentsOrder No: S64730 (AC model) S64740 (DC model)Single-arm sun tracker with integrated sun sensor for accurate tracking and easy alignment Accuracy: < 0,01° Angular resolution: 0,009° Maintenance-free driving technology HarmonicDrive® Torque: 12Nm Power requirements: AC model: 100 ... 240V AC, 50/60Hz, 13W DC model: 18 ... 30 V DC, 10W Operating temperature: -40 ... +50°C

Sun tracker STR 22g

Manufacturer: EKO InstrumentsOrder No: S64710 (AC model) S64720 (DC model)Double-arm sun tracker with integrated sun sensor for accurate tracking and easy alignment Accuracy: < 0,01° Angular resolution: 0,009° Maintenance-free driving technology HarmonicDrive® Torque: 24 (12+12) Nm Power requirements: AC model: 100 ... 240V AC, 50/60Hz, 13W DC model: 18 ... 30 V DC, 10W Operating temperature: -40 ... +50°C

silicon Irradiance sensor

Order-No.: S68xxxMeasurement of solar irradiance and temperatures Accuracy at 25°: ± 1.5°C Temperatur compensation: compared to pyranometer within operating range -20 ... +70°C and vertical beam of irradiance ± 5% Temperature range -20 ... +70°C Current shunt (Si series): 0.1 Ohm (TC=20ppm/K) @ 1V + 20mA output 0.12 Ohm (TC=20ppm/K) @ 10V output Non-linearity: ±0.5° Error: ±2.0° Solar cell: Monocrystalline silicon

Remote Sensing Systems for Wind Measurement

Remote sensing systems have become more and more popular in the wind industry as a supplement to the traditional met mast. Remote sensing systems can be applied to complement a wind site assessment campaign or for wind farm monitoring. The systems measure the wind conditions from the ground up to a height of 200 meters. Thus the wind speed and wind direction up to rotor blade tip-height or for the whole rotor blade area can be used to calculated the wind energy yield forcast. There are two types of remote sensing systems on the market: SODAR (Sonic Detection and Ranging) and LiDAR (Light Detection and Ranging). SODAR instruments measure the wind conditions by means of sound; LiDAR instruments use light to measure the wind characteristics. LiDAR systems can also be installed in top of a wind turbine to measure wind conditions in front and behind the turbine.

Lidar Zephir 300

Manufacturer: ZephIR LidarOrder-No: S96110 (DC), S96120 (AC)According to DNV GL, ZephIR 300 is accepted for use in bankable wind speed and energy assessments in simple terrain.ZephIR CareTM: 3 years warranty with complete suppport as well as 3-year service interval for unbroken wind measurement campaigns of up to 3 years.High data availability in all heights due to Continuous Wave Technology. Measurement principle: LiDAR (Light Detection and Ranging) Measurement range: 10 ... 200 m (up to 10 height measurements - configurable) Wind speed: 0 ... 70 m/s Accuracy (horizontal wind speed): <0.5% Accuracy (wind direction): <0.5%

Sodar Ammonit AQ510 windfinder

Manufacturer: AQSystemOrder-No: S91110 - AQ510 windfinder S91410 - AQ510 windfinder with warm winter kit S91420 - AQ510 windfinder with mild winter kit S91430 - AQ510 windfinder with cold winter kitLatest SODAR technology to measure wind conditions up to a height of 200m with a 5m resolution and low power consumption of only 15WIntegrated GPS module as well as tilt sensor for easy deployment Measurement principle: SODAR (Sonic Detection and Ranging) Measurement range: 40 ... 200 m (resolution 5 m) Wind speed: 0 ... 30 m/s Accuracy horizontal wind speed: ±2% (for wind speeds above 4 m/s compared to a cup anemometer in flat terrain) Accurady wind direction: <5° Power consumption: 15 W

Lidar Zephir DM

Manufacturer: ZephIR LidarOrder-No: S96210 (DC), S96220 (AC)Wind measurement on top of the turbine for effective turbine performance management. Wind measurement in front and behind the turbine. Measurement principle: LiDAR (Light Detection and Ranging) Measurement range: 10 ... 300 m Wind speed: 0 ... 70 m/s Accuracy (horizontal wind speed): <0.5% Accuracy (wind direction): <0.5%

AmmonitOR - Ammonit Online Platform

Conveniently monitor your campaign for wind and solar resource assessment as well as power curve measurement with AmmonitOR – MEASNET-compliant and 24/7 online available

With AmmonitOR (Ammonit Online Report) you can quickly and conveniently check your measurement data online – from everywhere and around the clock. Reliably manage, monitor and analyse your measurement stations for wind and solar site assessment as well as power curve measurement. Latest encryption technology protects your valuable measurement data at AmmonitOR.

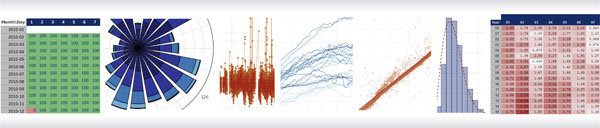

Display your measurement statistics in various plots and charts. Check your data for integrity and plausibility according to the MEASNET guideline with the help of configurable filters. Thus you can easily and early detect any deviations and defects can be corrected at an early stage. Do not lose your valuable measurement data due to any unforeseeable fault.

For documentation purposes, AmmonitOR automatically generates PDF reports. Or export selected measurement data for further analysis into a file format of your choice. Use AmmonitOR to arrange your processes more efficiently and conveniently.

Protect your valuable measurement data from manipulation by unauthorized parties. Prevent unauthorized reading of your files. AmmonitOR can digitally sign and encrypt your data. Hence, you protect data integrity and authenticity.

Discover the possibilities of AmmonitOR and register via: https://or.ammonit.com.

AmmonitOR - Your benefits

• Encrypted access to monitoring platform from everywhere and around the clock
• Automated data archiving and storage
• MEASNET-conform data quality check for plausibility and integrity
• Visualisation of measurement data in typical curve charts and plots, e.g., correlations, XY plots, turbulence intensity profiles and shadow zone plots
• Calendar to check data completeness
• Configurable filters to ensure high data quality
• Configurable automatic alert messages after technical defects or suspicious measurement data
• Configurable data exports into selectable file formats, e.g., Microsoft XLS or CSV
• Automatic PDF report generation to record the measurement campaign (optional: individual design according to your corporate design)
• Long-term data storage of up to three years on a dedicated Ammonit server (storage on a server of your choice on request)
• Integrated user rights management

Monitoring Measurement Systems with Ourdoor Security Cameras

Outdoor cameras can be used to monitor the behaviour of sensors and the environment of the measurement station. Particularly in regions with snow and ice as well as in desert climates with sand storms, photos can help to explain discrepancies in the measurement data. Our cameras can be connected to our Meteo-40 data logger, which manages the number and the file transfer of the high resolution photos taken by the camera. Our cameras are protected in a weather-proof housing.

Outdoor Allround Camera M25M (SEt)

Manufacturer: MobotixOrder-No: MC1600 (Set of outdoor security camera, overvoltage protection and mounting set)Network security camera for monitoring measurement systems and environment. High sensitive 5-megapixel sensor Ethernet interface Power supply via Power-over-Ethernet (PoE) Power consumption <4.5W Protection IP66

Precipitation

Precipitation sensors are designed to measure the quantity and intensity of precipitation striking the earth’s surface. Precipitation is best measured with a tipping bucket device. Precipitation, collected over a surface of 200 cm2, is conducted through an inflow sieve into a tipping bucket. When the bucket has collected 2 cm2 = 0.1 mm of precipitation, it tips over. This measurement principle is based on the “Guide to Meteorological Instruments No 8, WMO”. Precipitation sensors are typically applied for meteorological assessments. This robust device can be equipped with heating when appropriate to the climatic conditions.

Young precipitation sensor

Manufacturer: YoungOrder-No: S73100 / S73100HMeasuring principle: tipping-bucket WMO-Standards Catchment Area: 200 sq cm Measuring range: 11mm/min. Electrical output: magnetic reed switch, rating 24 VAC/DC, 500mA Temperature range: -20 ... +50°C Dimensions: 180 x 300 mm ( 390 with mounting base) Resolution: 0.1 mm Heatable Available with bird protection Accuracy: 2% till 25 mm/h 3% over 25 mm/h

Young precipitation sensors with bird protection

Manufacturer: YoungOrder-No: S73100 S73100H - heatable S73010 - bird protectionMeasuring principle: tipping-bucket with bird protection WMO-Standards Catchment area: 200 sq cm Resolution: 0.1 mm Measuring range: magnetic reed switch rating 24 VAC/DC, 500mA Temperature range: -20 ... 50°C Size: 180 x 300 mm (390 mm with mounting base) Heatable

Thies precipitation sensor

Manufacturer: ThiesOrder-No: S71100 / S71100HMeasuring principle: tipping-bucket WMO-Standards Electrical output: pulses Intensity dependent linearity Catchment area: 200 sq cm Resolution: 0.1 mm NS Housing: stainless steel, non-corrosive Heatable Available with bird protection Accuracy: ± 3% Measurement range: 0 ... 11 mm/min
